前段时间,看到群里一些小伙伴面试的时候被面试官问到这类题目。平时大家开发vue项目的时候,相信大部分人都是使用 vue-cli脚手架生成的项目架构,然后 npm run install 安装依赖,npm run serve启动项目然后就开始写业务代码了。
但是对项目里的webpack封装和配置了解的不清楚,容易导致出问题不知如何解决,或者不会通过webpack去扩展新功能。
该篇文章主要是想告诉小伙伴们,如何一步一步的通过 webpack4来搭建自己的vue开发环境
首先我们要知道 vue-cli生成的项目,帮我们配置好了哪些功能?
ES6代码转换成ES5代码scss/sass/less/stylus转css.vue文件转换成js文件jpg、png,font等资源文件webpack 基本环境该篇文章并不会细讲 webpack 是什么东西,如果还不是很清楚的话,可以先去看看 webpack官网
简单的说,webpack是一个模块打包机,可以分析你的项目依赖的模块以及一些浏览器不能直接运行的语言jsx、vue等转换成 js、css文件等,供浏览器使用。
在命令行中执行 npm init 然后一路回车就行了,主要是生成一些项目基本信息。最后会生成一个 package.json 文件
npm init
webpackwebpack是否安装成功了新建一个src文件夹,然后再建一个main.js文件
// src/main.js
console.log('hello webpack')
然后在 package.json 下面加一个脚本命令
然后运行该命令
npm run serve
如果在 dist 目录下生成了一个main.js文件,则表示webpack工作正常
build 文件夹,用来存放 webpack配置相关的文件build文件夹下新建一个webpack.config.js,配置webpack的基本配置webpack.config.js配置package.json 文件,将之前添加的 serve 修改为"serve": "webpack ./src/main.js --config ./build/webpack.config.js"
ES6/7/8 转 ES5代码npm install babel-loader @babel/core @babel/preset-env
webpack.config.js配置babel.config.js 文件npm run serve 命令,可以看到 ES6代码被转成了ES5代码了ES6/7/8 Api 转es5babel-loader只会将 ES6/7/8语法转换为ES5语法,但是对新api并不会转换。
我们可以通过 babel-polyfill 对一些不支持新语法的客户端提供新语法的实现
npm install @babel/polyfill
webpack.config.js配置在 entry 中添加 @babel-polyfill
polyfill2.1.2 和 2.1.1 只需要配置一个就行
修改时间 2019-05-05、 来自评论区 兮漫天 的提醒
npm install core-js@2 @babel/runtime-corejs2 -S
配置了按需引入 polyfill 后,用到es6以上的函数,babel会自动导入相关的polyfill,这样能大大减少 打包编译后的体积
scss 转 css在没配置 css 相关的 loader 时,引入scss、css相关文件打包的话,会报错
npm install sass-loader dart-sass css-loader style-loader -D
sass-loader, dart-sass主要是将 scss/sass 语法转为css
css-loader主要是解析 css 文件
style-loader 主要是将 css 解析到 html页面 的 style 上
webpack.config.js配置npm install postcss-loader autoprefixer -D
webpack.config.js配置postcss.config.jshtml-webpack-plugin来创建html页面使用 html-webpack-plugin来创建html页面,并自动引入打包生成的js文件
npm install html-webpack-plugin -D
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>Document</title>
</head>
<body>
<div id="app"></div>
</body>
</html>
webpack-config.js 配置通过代码的热更新功能,我们可以实现不刷新页面的情况下,更新我们的页面
npm install webpack-dev-server -D
webpack.config.js配置通过配置 devServer 和 HotModuleReplacementPlugin 插件来实现热更新
npm install file-loader url-loader -D
file-loader 解析文件url,并将文件复制到输出的目录中
url-loader 功能与 file-loader 类似,如果文件小于限制的大小。则会返回 base64 编码,否则使用 file-loader 将文件复制到输出的目录中
webpack-config.js 配置 添加 rules 配置,分别对 图片,媒体,字体文件进行配置// build/webpack.config.js
const path = require('path')
const HtmlWebpackPlugin = require('html-webpack-plugin')
const webpack = require('webpack')
module.exports = {
// 省略其它配置 ...
module: {
rules: [
// ...
{
test: /\.(jpe?g|png|gif)$/i,
use: [
{
loader: 'url-loader',
options: {
limit: 4096,
fallback: {
loader: 'file-loader',
options: {
name: 'img/[name].[hash:8].[ext]'
}
}
}
}
]
},
{
test: /\.(mp4|webm|ogg|mp3|wav|flac|aac)(\?.*)?$/,
use: [
{
loader: 'url-loader',
options: {
limit: 4096,
fallback: {
loader: 'file-loader',
options: {
name: 'media/[name].[hash:8].[ext]'
}
}
}
}
]
},
{
test: /\.(woff2?|eot|ttf|otf)(\?.*)?$/i,
use: [
{
loader: 'url-loader',
options: {
limit: 4096,
fallback: {
loader: 'file-loader',
options: {
name: 'fonts/[name].[hash:8].[ext]'
}
}
}
}
]
},
]
},
plugins: [
// ...
]
}
webpack 识别 .vue 文件npm install vue-loader vue-template-compiler cache-loader thread-loader -D
npm install vue -S
vue-loader 用于解析.vue文件
vue-template-compiler 用于编译模板
cache-loader 用于缓存loader编译的结果
thread-loader 使用 worker 池来运行loader,每个 worker 都是一个 node.js 进程。
webpack.config.js配置// build/webpack.config.js
const path = require('path')
const webpack = require('webpack')
const HtmlWebpackPlugin = require('html-webpack-plugin')
const VueLoaderPlugin = require('vue-loader/lib/plugin')
module.exports = {
// 指定打包模式
mode: 'development',
entry: {
// ...
},
output: {
// ...
},
devServer: {
// ...
},
resolve: {
alias: {
vue$: 'vue/dist/vue.runtime.esm.js'
},
},
module: {
rules: [
{
test: /\.vue$/,
use: [
{
loader: 'cache-loader'
},
{
loader: 'thread-loader'
},
{
loader: 'vue-loader',
options: {
compilerOptions: {
preserveWhitespace: false
},
}
}
]
},
{
test: /\.jsx?$/,
use: [
{
loader: 'cache-loader'
},
{
loader: 'thread-loader'
},
{
loader: 'babel-loader'
}
]
},
// ...
]
},
plugins: [
// ...
new VueLoaderPlugin()
]
}
// src/App.vue
<template>
<div class="App">
Hello World
</div>
</template>
<script> export default { name: 'App', data() { return {}; } }; </script>
<style lang="scss" scoped> .App { color: skyblue; } </style>
main.jsimport Vue from 'vue'
import App from './App.vue'
new Vue({
render: h => h(App)
}).$mount('#app')
npm run serve
通过 webpack提供的DefinePlugin插件,可以很方便的定义环境变量
plugins: [
new webpack.DefinePlugin({
'process.env': {
VUE_APP_BASE_URL: JSON.stringify('http://localhost:3000')
}
}),
]
新建两个文件
webpack.dev.js 开发环境使用
webpack.prod.js 生产环境使用
webpack.config.js 公用配置
开发环境与生产环境的不同
npm i @intervolga/optimize-cssnano-plugin mini-css-extract-plugin clean-webpack-plugin webpack-merge copy-webpack-plugin -D
@intervolga/optimize-cssnano-plugin 用于压缩css代码mini-css-extract-plugin 用于提取css到文件中clean-webpack-plugin 用于删除上次构建的文件webpack-merge 合并 webpack配置copy-webpack-plugin 用户拷贝静态资源// build/webpack.dev.js
const merge = require('webpack-merge')
const webpackConfig = require('./webpack.config')
const webpack = require('webpack')
module.exports = merge(webpackConfig, {
mode: 'development',
devtool: 'cheap-module-eval-source-map',
module: {
rules: [
{
test: /\.(scss|sass)$/,
use: [
{
loader: 'style-loader'
},
{
loader: 'css-loader',
options: {
importLoaders: 2
}
},
{
loader: 'sass-loader',
options: {
implementation: require('dart-sass')
}
},
{
loader: 'postcss-loader'
}
]
},
]
},
plugins: [
new webpack.DefinePlugin({
'process.env': {
NODE_ENV: JSON.stringify('development')
}
}),
]
})
// build/webpack.config.js
const path = require('path')
const webpack = require('webpack')
const HtmlWebpackPlugin = require('html-webpack-plugin')
const VueLoaderPlugin = require('vue-loader/lib/plugin')
module.exports = {
entry: {
// 配置入口文件
main: path.resolve(__dirname, '../src/main.js')
},
output: {
// 配置打包文件输出的目录
path: path.resolve(__dirname, '../dist'),
// 生成的 js 文件名称
filename: 'js/[name].[hash:8].js',
// 生成的 chunk 名称
chunkFilename: 'js/[name].[hash:8].js',
// 资源引用的路径
publicPath: '/'
},
devServer: {
hot: true,
port: 3000,
contentBase: './dist'
},
resolve: {
alias: {
vue$: 'vue/dist/vue.runtime.esm.js'
},
extensions: [
'.js',
'.vue'
]
},
module: {
rules: [
{
test: /\.vue$/,
use: [
{
loader: 'cache-loader'
},
{
loader: 'vue-loader',
options: {
compilerOptions: {
preserveWhitespace: false
},
}
}
]
},
{
test: /\.jsx?$/,
loader: 'babel-loader'
},
{
test: /\.(jpe?g|png|gif)$/,
use: [
{
loader: 'url-loader',
options: {
limit: 4096,
fallback: {
loader: 'file-loader',
options: {
name: 'img/[name].[hash:8].[ext]'
}
}
}
}
]
},
{
test: /\.(mp4|webm|ogg|mp3|wav|flac|aac)(\?.*)?$/,
use: [
{
loader: 'url-loader',
options: {
limit: 4096,
fallback: {
loader: 'file-loader',
options: {
name: 'media/[name].[hash:8].[ext]'
}
}
}
}
]
},
{
test: /\.(woff2?|eot|ttf|otf)(\?.*)?$/i,
use: [
{
loader: 'url-loader',
options: {
limit: 4096,
fallback: {
loader: 'file-loader',
options: {
name: 'fonts/[name].[hash:8].[ext]'
}
}
}
}
]
},
]
},
plugins: [
new VueLoaderPlugin(),
new HtmlWebpackPlugin({
template: path.resolve(__dirname, '../public/index.html')
}),
new webpack.NamedModulesPlugin(),
new webpack.HotModuleReplacementPlugin(),
]
}
const path = require('path')
const merge = require('webpack-merge')
const webpack = require('webpack')
const webpackConfig = require('./webpack.config')
const MiniCssExtractPlugin = require('mini-css-extract-plugin')
const OptimizeCssnanoPlugin = require('@intervolga/optimize-cssnano-plugin');
/* clean-webpack-plugin 3.0 以上的版本需要使用对象结构 */
// const CleanWebpackPlugin = require('clean-webpack-plugin')
const { CleanWebpackPlugin } = require('clean-webpack-plugin')
const CopyWebpackPlugin = require('copy-webpack-plugin')
module.exports = merge(webpackConfig, {
mode: 'production',
devtool: '#source-map',
optimization: {
splitChunks: {
cacheGroups: {
vendors: {
name: 'chunk-vendors',
test: /[\\\/]node_modules[\\\/]/,
priority: -10,
chunks: 'initial'
},
common: {
name: 'chunk-common',
minChunks: 2,
priority: -20,
chunks: 'initial',
reuseExistingChunk: true
}
}
}
},
module: {
rules: [
{
test: /\.(scss|sass)$/,
use: [
{
loader: MiniCssExtractPlugin.loader
},
{
loader: 'css-loader',
options: {
importLoaders: 2
}
},
{
loader: 'sass-loader',
options: {
implementation: require('dart-sass')
}
},
{
loader: 'postcss-loader'
}
]
},
]
},
plugins: [
new webpack.DefinePlugin({
'process.env': {
NODE_ENV: 'production'
}
}),
new MiniCssExtractPlugin({
filename: 'css/[name].[contenthash:8].css',
chunkFilename: 'css/[name].[contenthash:8].css'
}),
new OptimizeCssnanoPlugin({
sourceMap: true,
cssnanoOptions: {
preset: [
'default',
{
mergeLonghand: false,
cssDeclarationSorter: false
}
]
}
}),
new CopyWebpackPlugin([
{
from: path.resolve(__dirname, '../public'),
to: path.resolve(__dirname, '../dist')
}
]),
new CleanWebpackPlugin()
]
})
"scripts": {
"serve": "webpack-dev-server --config ./build/webpack.dev.js",
"build": "webpack --config ./build/webpack.prod.js"
},
有的时候,我们需要看一下webpack打包完成后,到底打包了什么东西,
这时候就需要用到这个模块分析工具了 webpack-bundle-analyzer
npm install --save-dev webpack-bundle-analyzer
webpack-prod.js配置,在 plugins属性中新增一个插件在开发环境中,我们是没必要进行模块打包分析的,所以我们将插件配置在了生产环境的配置项中
npm run build
执行成功后会自动打开这个页面
VueRouter,Vuexnpm install vue-router vuex --save
Vue-Routersrc 目录下新增两个视图组件 src/views/Home.vue 和 src/views/About.vue// src/views/Home.vue
<template>
<div class="Home">
<h2>Home</h2>
</div>
</template>
<script> export default { name: 'Home', data() { return {}; } }; </script>
<style lang="scss" scoped>
</style>
About.vue 内容跟 Home.vue 差不多,将里面的 Home 换成 About 就OK了
在 src 目录下新增一个 router/index.js 文件
// src/router/index.js
import Vue from 'vue'
import VueRouter from "vue-router";
import Home from '../views/Home';
import About from '../views/About';
Vue.use(VueRouter)
export default new VueRouter({
mode: 'hash',
routes: [
{
path: '/Home',
component: Home
},
{
path: '/About',
component: About
},
{
path: '*',
redirect: '/Home'
}
]
})
main.js 文件// main.js
import Vue from 'vue'
import App from './App.vue'
import router from './router'
new Vue({
router,
render: h => h(App)
}).$mount('#app')
App.vue 组件// App.vue
// 在 template 中添加
// src/App.vue
<template>
<div class="App"> Hello World </div>
<div> // router-link 组件 用来导航到哪个路由 <router-link to="/Home">go Home</router-link> <router-link to="/About">go About</router-link> </div>
<div> // 用于展示匹配到的路由视图组件 <router-view></router-view> </div>
</template>
<script> export default { name: 'App', data() { return {}; } }; </script>
<style lang="scss" scoped> .App { color: skyblue; } </style>
运行 npm run serve 命令,如没配置错误,是可以看到点击不同的路由,会切换到不同的路由视图
在没配置路由懒加载的情况下,我们的路由组件在打包的时候,都会打包到同一个js文件去,当我们的视图组件越来越多的时候,就会导致这个 js 文件越来越大。然后就会导致请求这个文件的时间变长,最终影响用户体验
npm install @babel/plugin-syntax-dynamic-import --save-dev

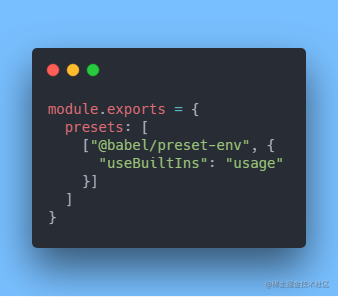

babel.config.jsmodule.exports = {
presets: [
[
"@babel/preset-env",
{
useBuiltIns: "usage"
}
]
],
plugins: [
// 添加这个
'@babel/plugin-syntax-dynamic-import'
]
}
router/index.js 路由配置文件import Vue from 'vue'
import VueRouter from "vue-router";
Vue.use(VueRouter)
export default new VueRouter({
mode: 'hash',
routes: [
{
path: '/Home',
component: () => import(/* webpackChunkName: "Home" */ '../views/Home.vue')
// component: Home
},
{
path: '/About',
component: () => import(/* webpackChunkName: "About" */ '../views/About.vue')
// component: About
},
{
path: '*',
redirect: '/Home'
}
]
})
npm run build 查看是否生成了 Home...js 文件 和 About...js 文件src 目录下新建一个 store/index.js 文件// store/index.js
import Vue from 'vue'
import Vuex from 'vuex'
Vue.use(Vuex)
const state = {
counter: 0
}
const actions = {
add: ({commit}) => {
return commit('add')
}
}
const mutations = {
add: (state) => {
state.counter++
}
}
const getters = {
getCounter (state) {
return state.counter
}
}
export default new Vuex.Store({
state,
actions,
mutations,
getters
})
main.js 文件 导入 vuex// main.js
import Vue from 'vue'
import App from './App.vue'
import router from './router'
import store from './store' // ++
new Vue({
router,
store, // ++
render: h => h(App)
}).$mount('#app')
App.vue ,查看 vuex 配置效果// App.vue
<template>
<div class="App">
<div>
<router-link to="/Home">go Home</router-link>
<router-link to="/About">go About</router-link>
</div>
<div>
<p>{{getCounter}}</p>
<button @click="add">add</button>
</div>
<div>
<router-view></router-view>
</div>
</div>
</template>
<script> import { mapActions, mapGetters } from 'vuex' export default { name: 'App', data() { return {}; }, computed: { ...mapGetters(['getCounter']) }, methods: { ...mapActions(['add']) } }; </script>
<style lang="scss" scoped> .App { text-align: center; color: skyblue; font-size: 28px; } </style>
npm run serve当点击按钮的时候,可以看到我们的getCounter一直在增加
到目前为止,我们已经成功的自己搭建了一个 vue 开发环境,不过还是有一些功能欠缺的,有兴趣的小伙伴可以交流交流。在搭建过程中,还是会踩很多坑的。
如果还不熟悉 webpack 的话,建议自己搭建一次。可以让自己能深入的理解 vue-cli 替我们做了什么
项目代码:github.com/lentoo/vue-…
使用 webpack 的各种插件提升你的开发效率
vue-cli3 项目从搭建优化到docker部署
Event Loop 原来是这么回事
通过vue-cli3构建一个SSR应用程序
欢迎关注公众号“码上开发”,每天分享最新技术资讯
